HVH - HOT YOGA CLIMATE TOWER

Overview
  • 3-in-1: heating, ventilation and humidification
  • 3 speed fan
  • Easy to install and maintain
  • Built-in thermostat with LCD
HVH
  • Overview

HVH - Overview

Overview

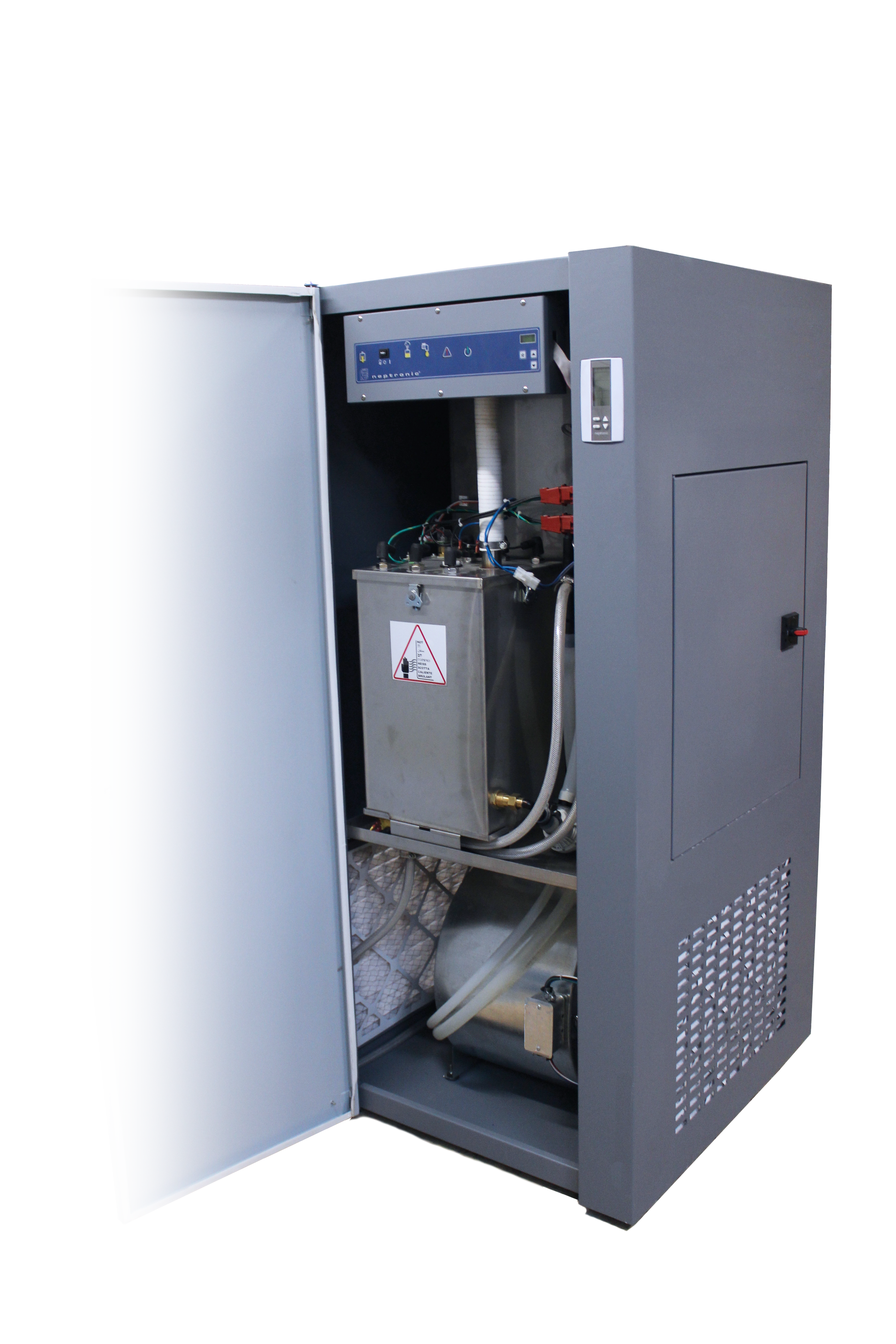

Complete turnkey Hot Yoga studio system. A fully integrated system that includes ventilation, heating, humidification, energy conservation with closed proportional control, and easy maintenance. Designed to reliably maintain 104°F (40°C) with 50% RH in a space of up to 7060 cu.ft (200m³). Air supply can come directly from the room or from a local duct network.

Features

  • 3-in-1: Heating, ventilation and humidification
  • External/remote temperature/humidity sensor
  • 3-speed fan
  • Built-in thermostat with LCD
    • Displays temperature, humidity and fan status
    • Adjust temperature and humidity setpoints
    • Change filter and system status indications
  • Easy to install and to maintain
  • Optional anti-germ UV light

Models

Description HVH-6 HVH-7 HVH-10 HVH-12
Heater Power 6 kw 7.5 kw 10 kw 12 kw
Delta T 24°F [13°C] 29.6°F [16°C] 39.6°F [22°C] 47.5°F [26°C]
Humidifier Power Up to 6 kw Up to 16 kw
Capacity Max 18 lb/hr [8kg/hr] Max 48 lb/hr [22kg/hr]
Total Current 208V/3ph = max 34A
240V/1ph = Max 50A
208V/3ph = max 38A
240V/1ph = Max 57A
208V/3ph = max 56A 208V/3ph = max 79A
