SKVF - EVAPORATIVE COOLER

Overview
  • ECM fan with variable output (10-100%)
  • Compact, quiet and standalone
  • Low and easy maintenance with removable panels
  • Configurable for minimal water usage
System Components
  • Configurable operation and drain cycle schedules
  • BACnet MS/TP and Modbus compatible
  • User-friendly, menu-driven 128 x 64 LCD interface
  • Reliable and energy-efficient ECM fan
Hygienic & Safe
  • Anti-bacterial silver ion dosing cartridges
  • No water treatment required
  • Hygienic operation with tap or RO water
  • Inorganic and inflammable material
Sensors & Controls
  • Higher energy conservation
  • Lower costs and higher values
  • Seamless integration and interoperability
SKV - Evaporative SKV - Controller
  • Overview

    Operation & Features
  • System Components

    Controller & ECM Fan
  • Hygienic & Safe

    Media & Water Quality
  • Sensors & Controls

    Temperature & Humidity
SKVF - Overview

Overview

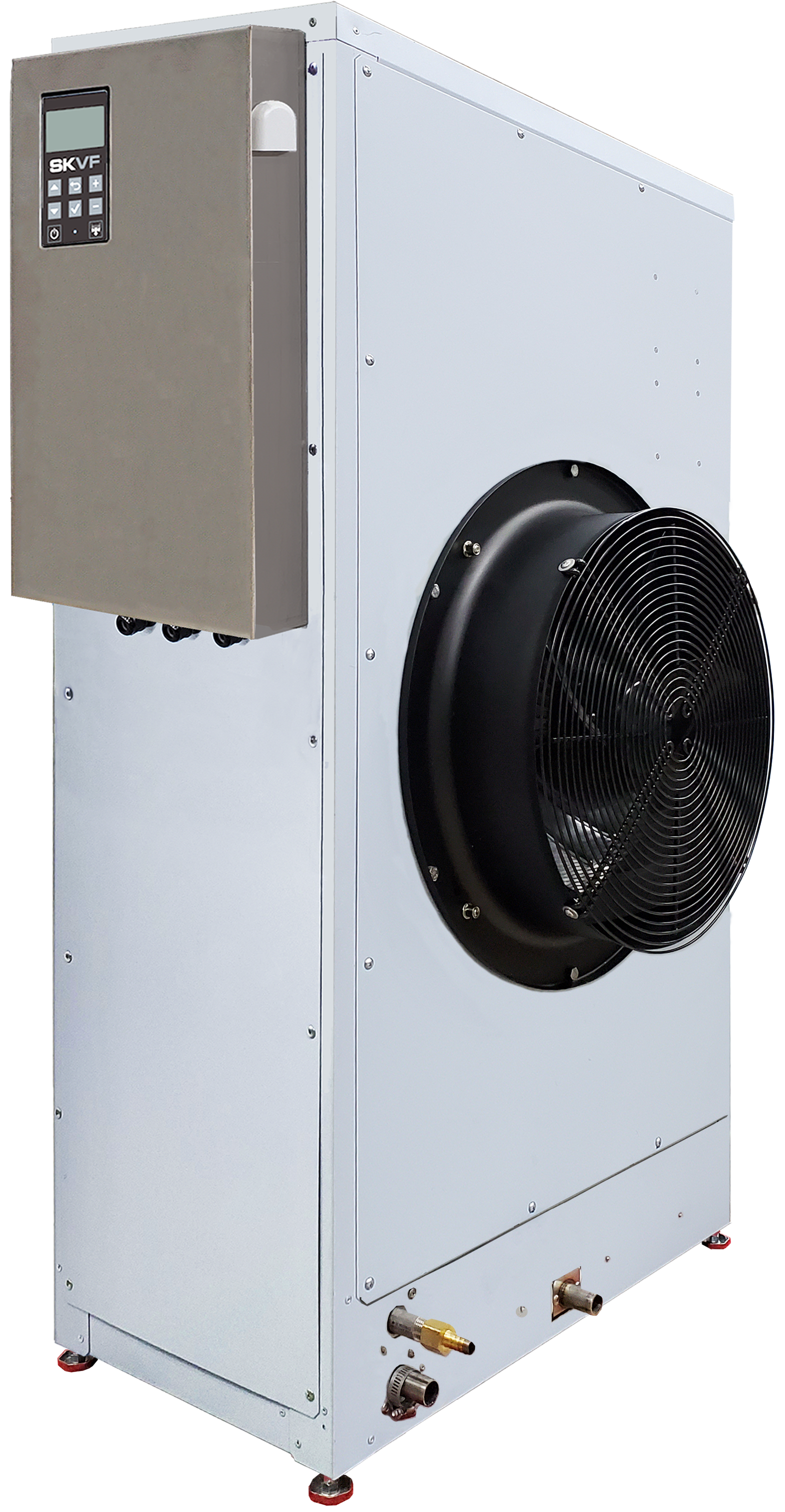

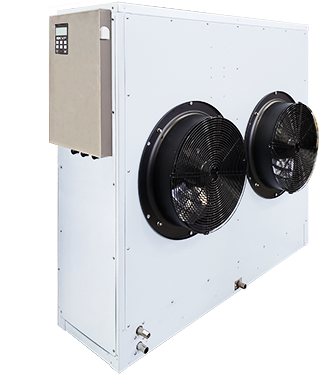

Neptronic’s SKVF Evaporative Cooler is engineered and built to offer maximum comfort in large scale applications by providing adequate humidification and cooling. In hot applications, this cooling can greatly contribute to process efficiency by enhancing worker productivity, contributing to product quality and reducing energy consumption.

Our SKVF uses energy-efficient and modulating fans to circulate outdoor fresh air or indoor recirculated air. It warms dry air when it passes through the wet media to make the water evaporate, which then raises the humidity level. Moreover, our unit can cool the air due to the energy transfer generated by the water evaporation.

The SKVF’s controller can be configured with either temperature control for a cooling application or humidity control for humidification. It allows you to temper industrial and commercial indoor areas where heat build-ups could be unfavorable to occupants, production and material goods.

Benefits

  • ECM fan with variable output (10-100%)
  • Compact, quiet and standalone evaporative cooler
  • Free cooling up to 12°C (21.5°F)
  • Very low energy consumption (< 1.5kW)
  • Hygienic and environmentally friendly operation
  • Very low and easy maintenance with removable panels
  • Configurable for minimal water usage
  • Configurable fan operation for continuous ventilation or media drying

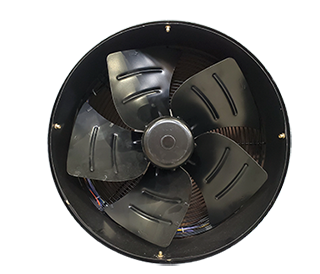

ECM Fan

Advantages of the SKVF’s ECM fan:

  • High energy efficiency – up to 30% more efficient compared to AC fans
  • Integrated continuous control for the fan speed, torque and feedback signal
  • Low operating temperatures increase the fan’s reliability and longevity
  • Relatively compact and versatile at high capacity

Integrated, Multi-Platform Controller

The SKVF controller is configured specifically for your SKVF Evaporative Cooler.

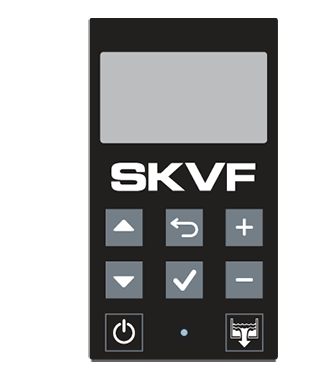

  • User-friendly, menu-driven interface on a 128 x 64 LCD with 8 function buttons for faster configuration and operation
  • User rights management system allows for menu to display only functions available to the type of user logged in: End User, Service Technician, Installer or Integrator
  • “Quick Config” menu allows for faster and easier installation, by displaying only the most used functions and configurations
  • Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
  • In-field firmware can be upgraded via SD card, USB or BACnet
  • Simple viewing and exporting of trending log and alarm log

Optional Features

  • The selectable BACnet MS/TP or Modbus menus allow access to over 75 objects/registers for integration with a BMS and IoT (Internet of Things)
  • Ethernet module
  • BACnet IP or Modbus IP
  • Web services make it possible to perform unit configurations, remote diagnostics and many more functions from any location

SKVF Media Panels

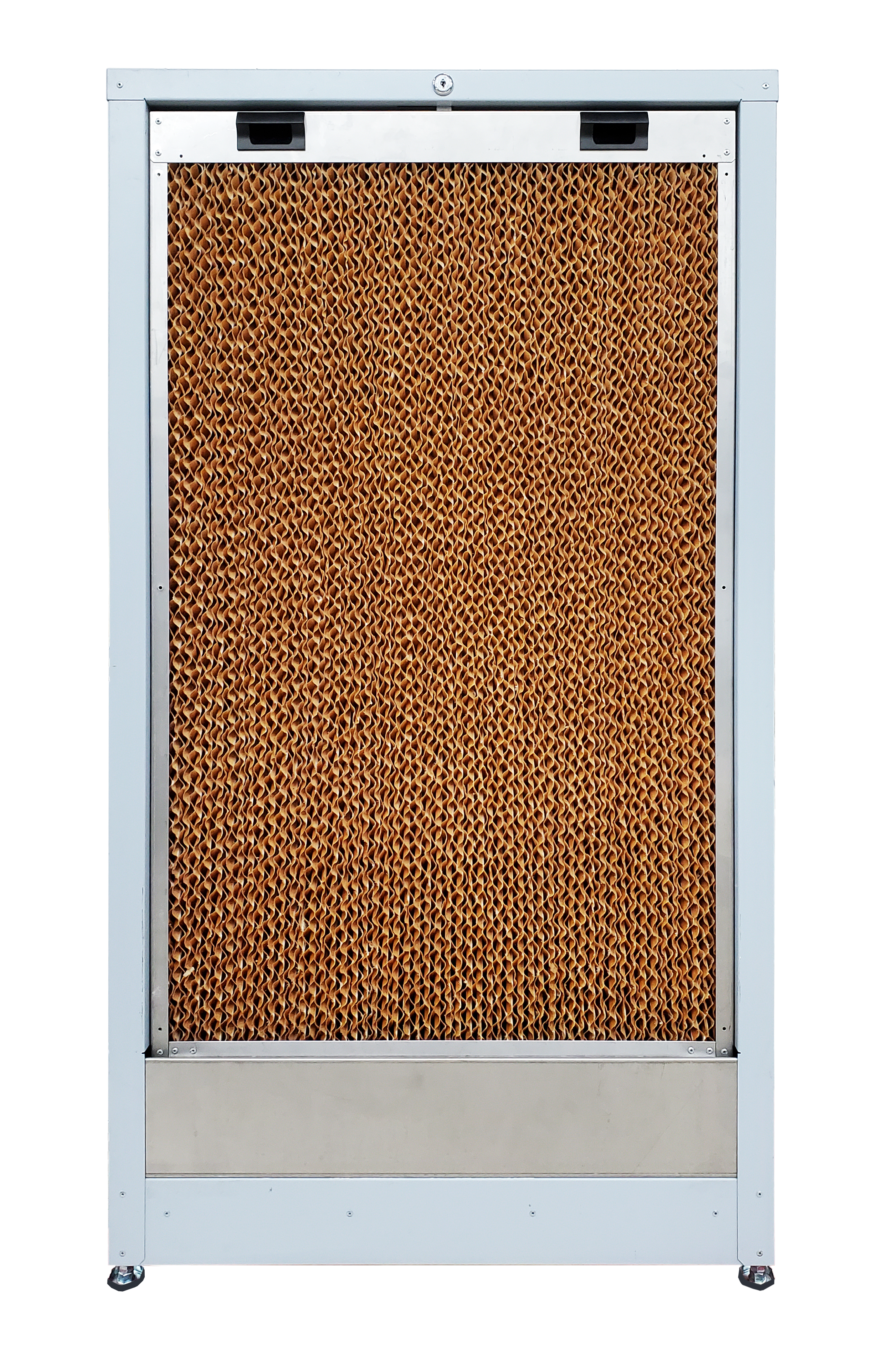

The SKVF’s evaporative corrugated media is made of fiberglass material bounded with a special inorganic compound, which allows exceptional moisture absorption, ensuring continuous humidification and evaporative cooling even at a high air velocity. The inorganic compound makes it hygienic, fire resistant and incombustible.

  • Inorganic and inflammable material
  • Safe and hygienic
  • Low pressure drop
  • Trouble free maintenance
  • No water treatment required
  • No risk of over saturation
  • Media frame made of stainless steel
  • Media easily removable from stainless steel frame

Water Quality

Hygienic operation with tap or RO water

  • Odor free media
  • Water treated with 5μm pre-filter
  • Anti-bacterial silver ion dosing cartridges prevent microbial growth
  • UV sterilizer on water line (optional)
  • Evaporative media fan drying sequence
  • Normally open (NO) drain valve protection in case of power failure

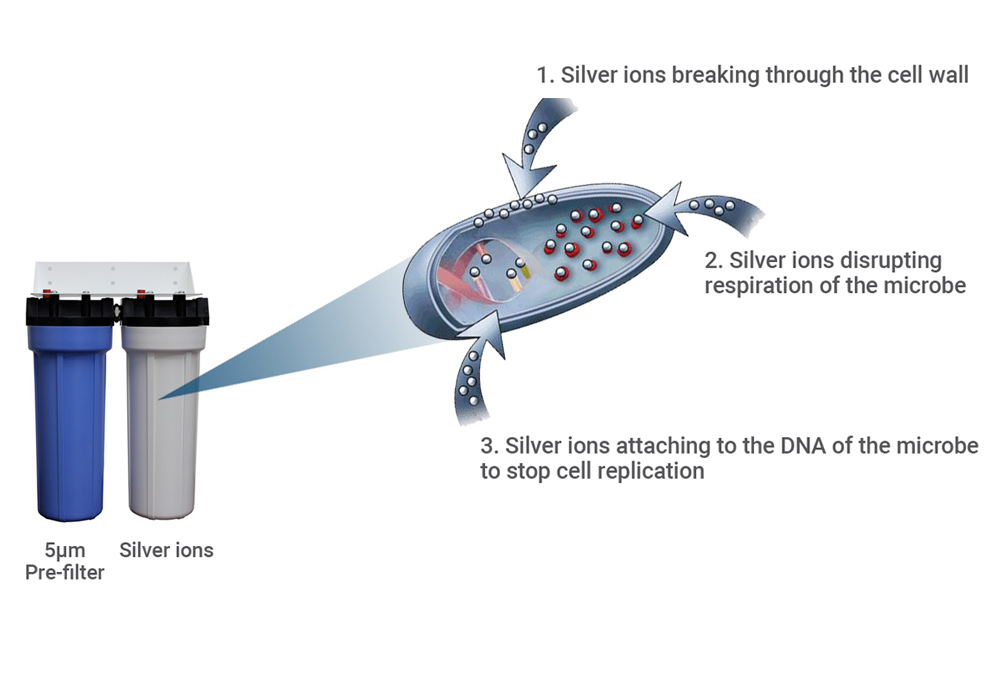

How Silver Ions Work

Find out more about Neptronic’s range of controls and sensors that can accompany your new SKVF Evaporative Cooler.

Details

  • Used to configure and operate the SKVF
  • Icon-driven and one line of text information
  • Four-wire connection between device and SKVF controller
  • Selectable Fahrenheit or Celsius scale
  • Network service port via on-board mini USB connector

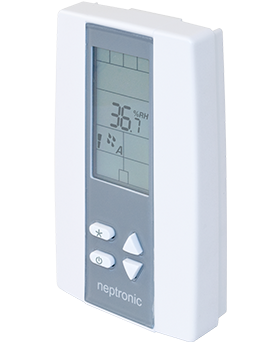

Details

  • BACnet MS/TP (model HROB20 only)
  • 4 analog and 2 dry contact outputs
  • 2 external sensor inputs
  • Alarm and low signal selector input
  • Independently configure PID on humidify & dehumidify ramps
  • Adjustable setpoint with auto reset from external sensor

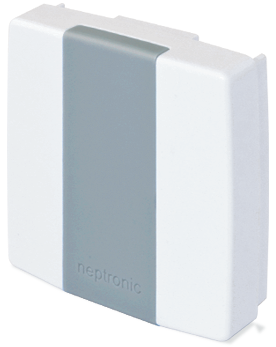

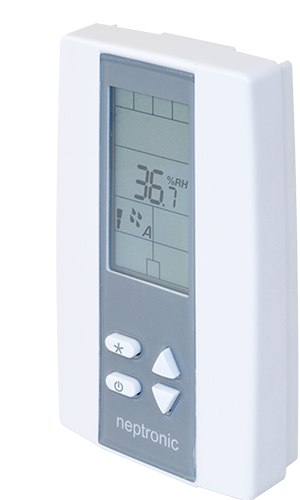

Details

  • Built-in temperature sensor
  • Plastic cover for wall mount installation
  • 2 analog outputs (0 - 10 Vdc)
  • High accuracy and stability

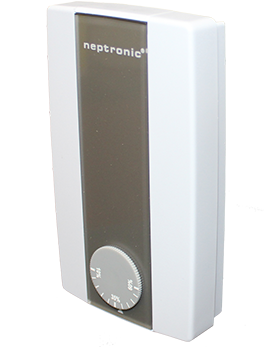

Details

  • High-limit setpoint dial (20 - 90% RH)
  • Built-in humidity sensor
  • 24Vac or 24Vdc
  • 1 dry contact output
