TechTime is a Neptronic publication aiming to inform you of common issues highlighted by our technical support team and the best way to deal with them. Each edition features three new topics and will be posted on neptronic.com.

Description: NEP's iMac:Users:frederick:Desktop:Suggest Topic.png

Description: Description: commun:Frédéric:Frédéric:Communications:TechTime:May 2015:Images:HVAC Controls Divider.png

Sensor Vc. Switch

Changeovers on the EVCB Series Controllers

When selecting a VAV box controller, it's important to know whether the central system operates in one mode (cooling or heating) or two modes (cooling & heating). With one-mode central systems, VAV controllers are set directly in the system’s mode, but with two-mode central systems, VAV controllers need to know if the air is cool or hot. In order for the controller to know the difference, a changeover temperature sensor or switch is required.

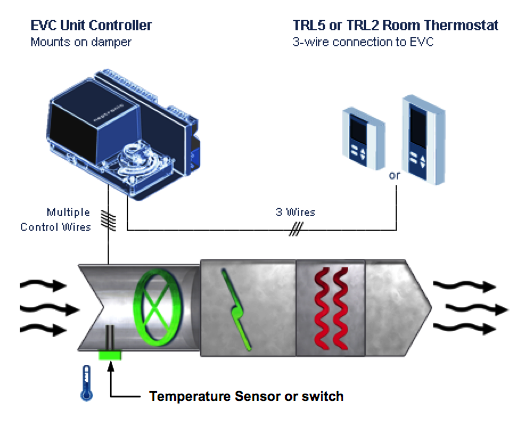

Even though there is a difference between the sensor and the switch, the location is the same. It must be located before the VAV box (see illustration below).

Changeover Temperature Sensor

The Neptronic changeover temperature sensor STC8-11 speaks for itself. It's a 10kΩ type 3 or G duct thermistor that senses the temperature of the air in the central system.



Advantages

·      the setpoint is adjustable

·      the wiring is very simple (no polarity, no power).



Disadvantage

·      one sensor is required for each VAV box.

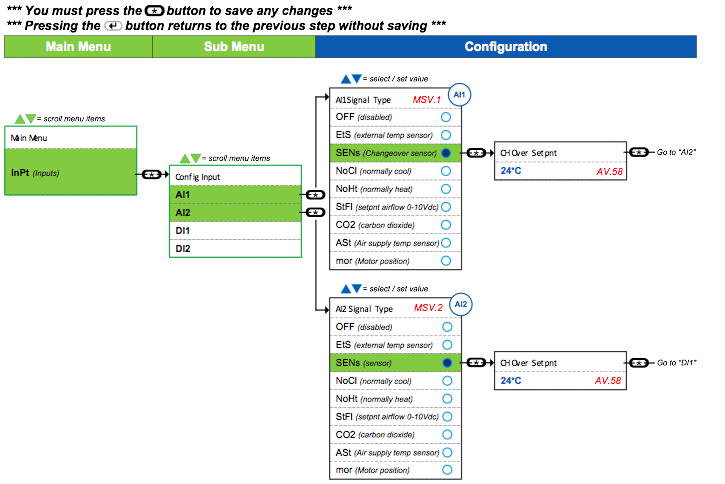

On the VAV controller there are two analog inputs that can be used; AI1 or AI2. The illustrations below show an example of the wiring and configuration steps of setting up a changeover temperature sensor.

Note that in the wiring diagram above, AI1 is used as an example but the wiring also applies if AI2 is used.



Changeover Switch

The changeover switch is a SPDT (Single Pole, Double Throw) relay. The Neptronic SCC80 is a thermistor with a fixed setpoint, which sends a digital signal to the controller. This means that there are no setpoints to adjust but requires a little more thought when doing the installation.



Advantages:

·      the signal can be sent to several VAV boxes as long as the wiring distance does not exceed 300 feet.



Disadvantages:

·      requires a power supply in order to operate, which means more wires



The changeover switch may be used with the VAV controller`s analog inputs (AI1 or AI2) or digital input #2 (DI2).

SCC80 temperature and states



EVCB binary value input and states

When using the SCC80’s Normally Closed contact, the EVCB controller should be configured as Normally Cool. Inversely, the Normally Opened contact of the SCC80 should be used with the Normally Heat of the EVCB.



The EVCB series controller can accept grounded or 24Vac binary signals.

EVCB Terminal Block

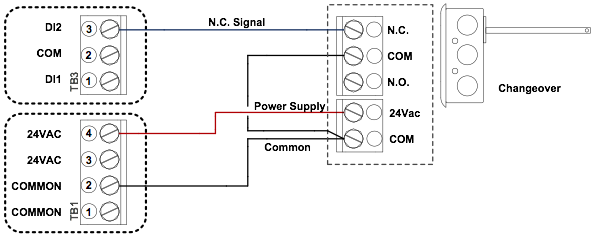

Grounded signal setup as a Normally Cool contact.





EVCB Terminal Block

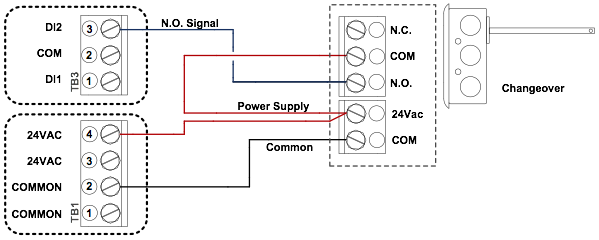

24Vac signal setup as a Normally Heat contact.





Note that in the examples above, DI2 is used but the same wiring applies to AI1 or AI2.

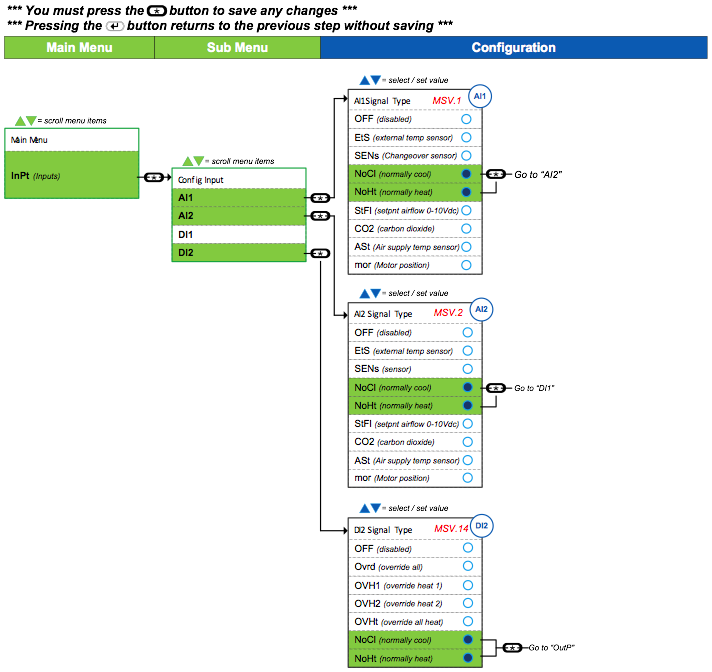

These are the configuration steps for the changeover switch.



To learn more about the changeovers on the EVCB series controllers, visit our website.

Description: Description: commun:Frédéric:Frédéric:Communications:TechTime:April 2015:Images:Faces:Patrick Lafrance Tech Bulletin Pic.png

Patrick Lafrance

Technical Support – HVAC Controls

Contact him at this email address patrick.lafrance@neptronic.com
