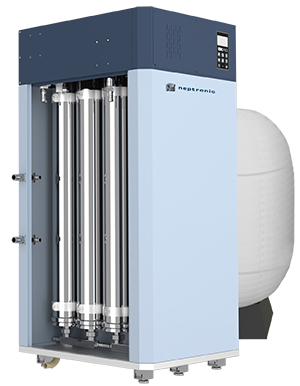

Neptronic SKRO – Reverse Osmosis System

Optimize Humidification with RO Filtration

The Neptronic SKRO is a scalable reverse osmosis water treatment system tailored for adiabetic and isothermal Neptronic humidifiers. It is designed to purify water for atomizing applications, and eliminate maintenance on electric, gas, and steam to steam humidifiers. The Neptronic SKRO purifies water using a semi-permeable membrane to remove impurities, dissolved solids, salts, bacteria, and viruses. By applying pressure, water is forced through one or multiple membranes, ensuring exceptionally pure water through advanced filtration.

Designed to fully support Neptronic’s humidification range, the SKRO is available in multiple capacities:

The larger model, covering a range of 500-4510 Lb/h, is built for high-capacity humidifiers and delivers water purification for demanding systems.

Commercial Kitchens and Restaurants

The smaller model, covering a range of 265-480 Lb/h, is ideal for small-capacity humidifiers: wall-mounted, compact, and perfect for light-duty applications.

Commercial Kitchens and Restaurants
Commercial Kitchens and Restaurants
Commercial Kitchens and Restaurants

4011008

Why you need our SKRO?

The Neptronic SKRO Reverse Osmosis system is your best defense against scale buildup and high maintenance costs. By removing nearly all of the dissolved minerals, it protects your humidifier, ensures cleaner steam, and boosts energy efficiency. Designed to integrate seamlessly with Neptronic humidifiers, the SKRO keeps your equipment running smoothly and your indoor air at its best. Less cleaning, more performance-just pure, smart humidity control.

Fully Automated Operation

Elegant Design

Hassle-Free Setup

SKRO – Reverse Osmosis System

Key Features

  • Large capacity range of 265-4510 Lb/h.
  • User-friendly interface with LCD display to simplify operation and monitoring.
  • Advanced digital sensors to track pressure, water quality (TDS), and flow rates for consistent performance in real time.
  • Real-time clock and SD card/USB key for trending, scheduling, and historical tracking.
  • Easy upgrades and enhanced functionality via USB updates.
  • Dedicated controller to eliminate the need for manual adjustments.

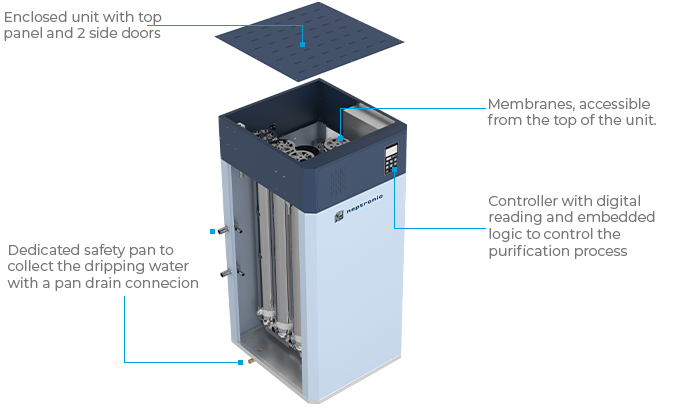

  • Top and side access for quick and easy maintenance.
  • The enclosed cabinet with a built-in pan drain ensures a clean and secure installation.
  • BACnet and Modbus connectivity for smooth integration with building management systems.
  • Adaptable to different water conditions.

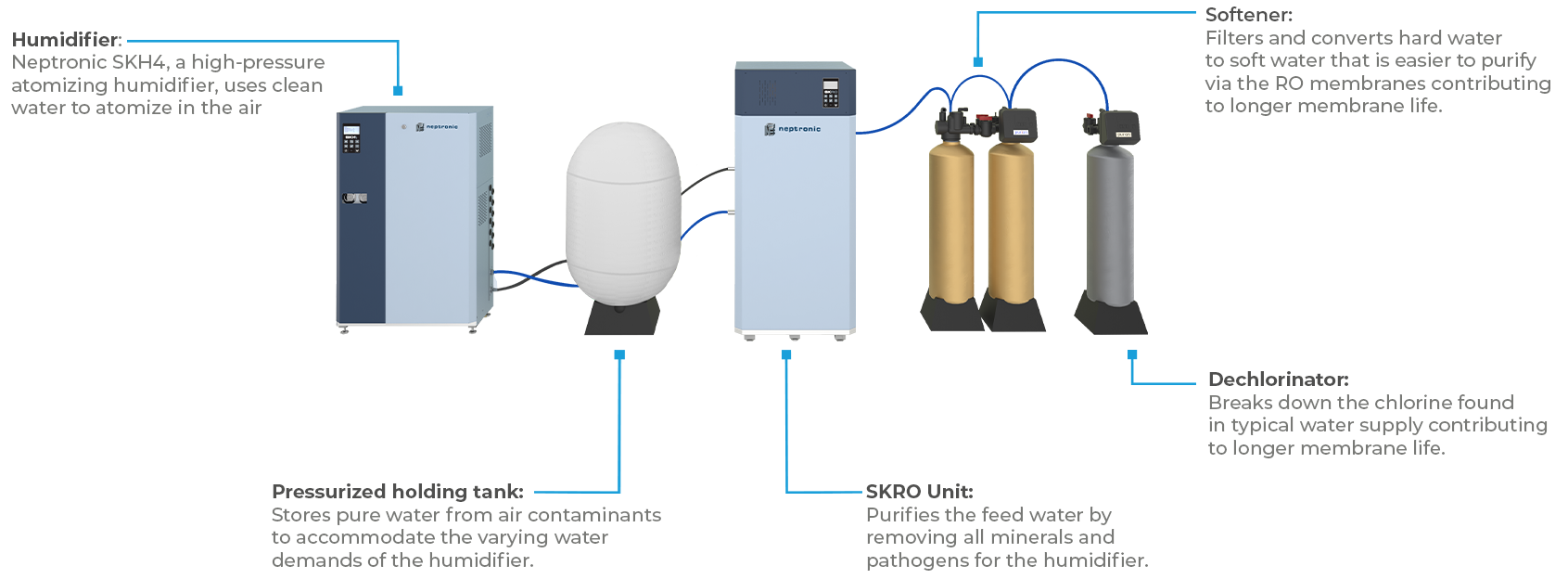

Full system:

The Neptronic SKRO is designed to work seamlessly with a dechlorinator unit and water softener to maximize membrane performance and longevity. All components are available directly from Neptronic and can be optionally mounted on a skid for easy installation.

 Storage Spaces
APPLICATIONS

Typical Applications

Commercial Kitchens and Restaurants

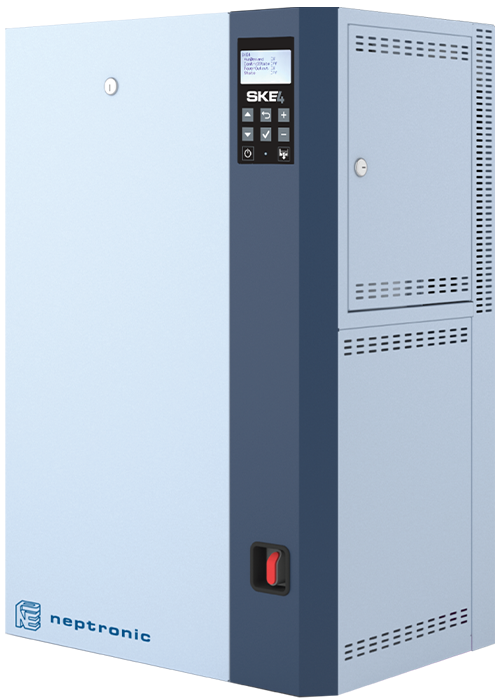

Isothermal Humidifiers (SKE4, SKS4, SKG4)

Reduces maintenance by providing purified water for consistent performance

Gyms

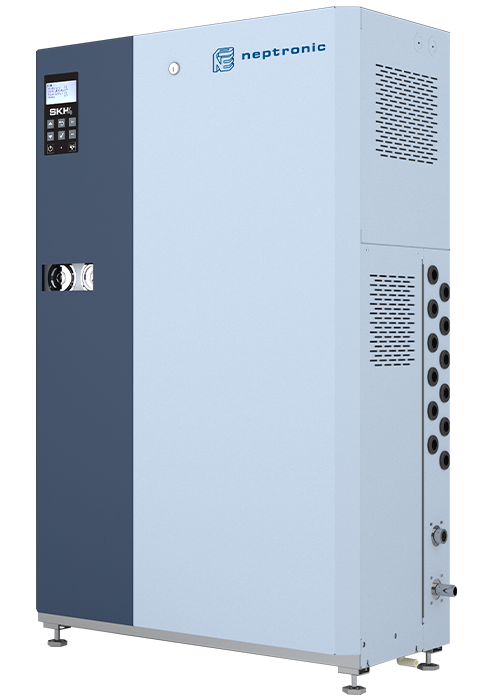

High Pressure Humidifiers (SKH4)

Ideal for use with high-pressure humidifiers for optimal humidification efficiency

Garages

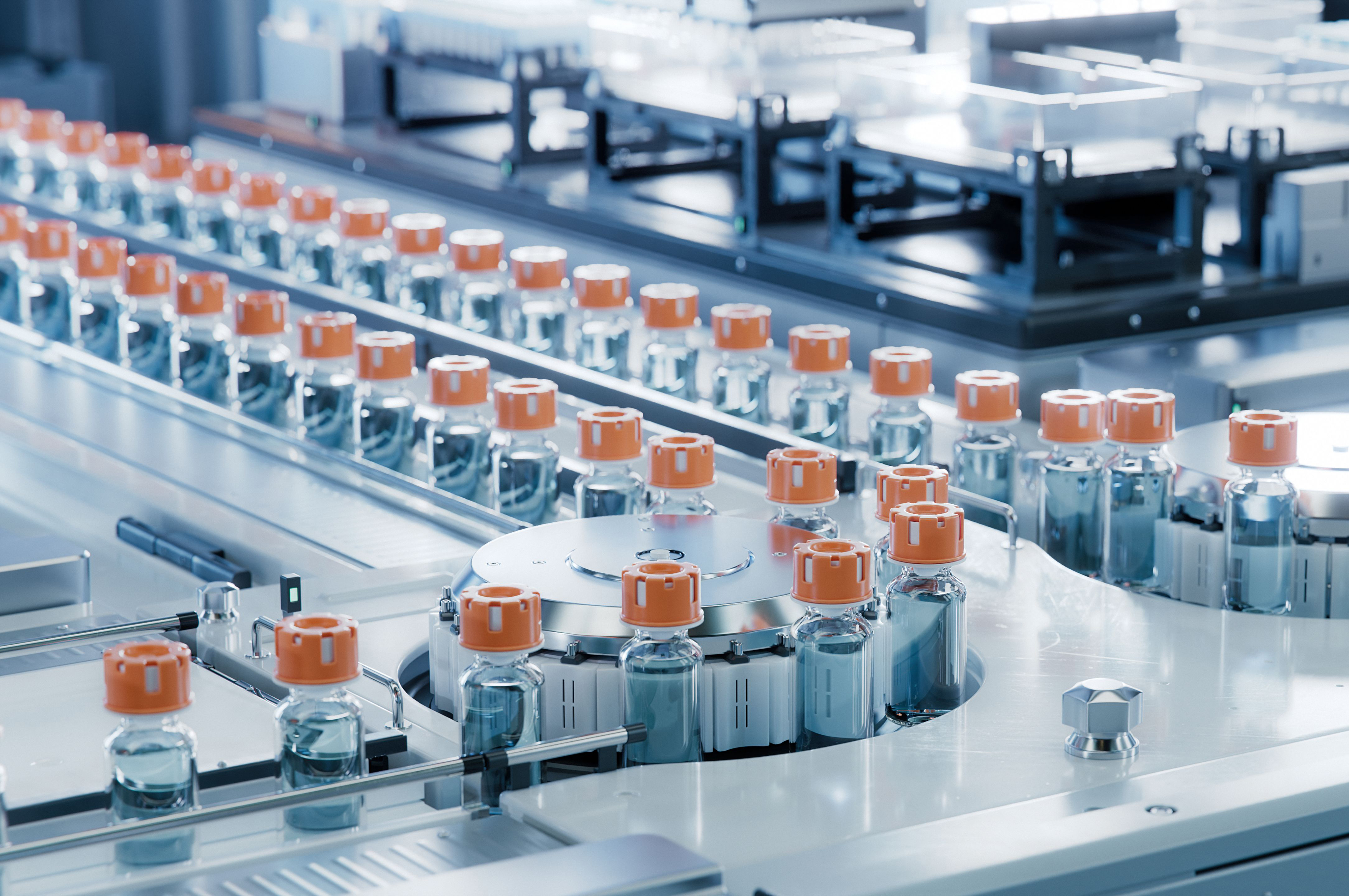

Industrial Applications

Perfect for industries such as printing and photography, pharmaceutical, and electronics manufacturing, where clean water is crucial for various processes beyond humidification

 Storage Spaces

Hard Water Environments

Filters mineral-laden or contaminated water, ensuring it's suitable for humidification and preventing scale buildup

The SKRO is the perfect solution for ensuring clean, high-quality water in a wide range of industries and applications

NOMENCLATURE
N 046 B E
Frequency Pure water capacity: Membrane type: Voltage:
N = 60Hz - L/h GPD A – Low Energy
B – Extra Low Energy
C – Calcium Tolerant
D – Chlorine Tolerant
A = 120V / 1ph
B = 208V / 1ph
C = 220-240V / 1ph
D = 208V / 3ph
E = 220-240V / 3ph
F = 400V / 3ph
G= 480V / 3ph
H= 600V / 3ph
012 121 760
022 220 1460
023 230 1470
046 460 2900
091 910 5770
137 1370 8690
205 2050 13000
CAPACITIES
Model Capacity of pure water @ 50°F
L/h lb/h
SKRO-N012x 120 265
SKRO-N022x 220 480
SKRO-N023x 230 500
SKRO-N046x 460 1010
SKRO-N091x 910 2000
SKRO-N137x 1370 3010
SKRO-N205x 2050 4510
SIZING WITH NEPTRONIC HUMIDIFIERS

The SKRO is ideal to size with Neptronic’s humidifiers for pure water supply.

The following table shows the various models of SKRO that can be sized for the humidifiers.

SKRO Model SKE Model SKG Model SKH4 Model SKH4 SS Model
SKRON012 SKE4-S - - -
SKE4-M
SKRON022 SKE4-L SKG4-1 Module SKH4-N021B -
SKE4-XL
SKRON023 - SKG4-1 Module SKH4-N021B -
SKRON046 - SKG4-2 Modules SKH4-N050B SKH4-N062S
SKRON091 SKG4-3 Modules SKH4-N100B SKH4-N140S
SKRON137 SKG4-4 Modules SKH4-N185B SKH4-N225S
SKRON205 - - SKH4-N280B SKH4-N280S
ACCESSORIES
BACNET-MODBUS-logo
BACNET-MODBUS-logo

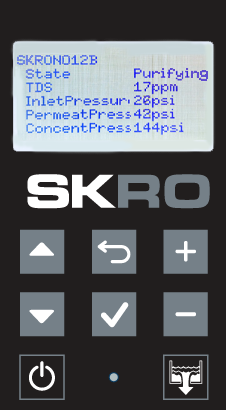

Integrated, Multi-Platform Controller

The SKRO controller is configured specifically for your reverse osmosis needs.

  • User-friendly, menu-driven interface on a 128 x 64 LCD with 8 function buttons for faster configuration and operation
  • Customizable menu access for End Users, Technicians, Installers, and Integrators
  • Independent scheduling system for unit operation and drain cycle configurable via the menu or the BACnet communication interface
  • Firmware updates via SD card, USB, or BACnet
  • View and export trending and alarm logs with ease
