Sensors and Components
Sensors - Temperature and Humidity Sensors
- Most advanced wall and duct mounted temperature & humidity sensors
- Economical solutions for your sensing needs
- Combined with Neptronic humidifiers for optimal quality environment
Thermostats - Thermostats and Setpoints
- Modern Design
- Economical solutions for your temperature setting
- Available scale in Celcius or Fahrenheit
- Building automation system applications
- Combined with Neptronic humidifiers for optimal quality environment
Components - Ancillary Products
- Variety of controls components for your HVAC systems
- Signal Selector
- Change Over
- Electric Positioner
- Many more
-
Sensors
Temperature
and Humidity
Temperature and Humidity
-
Thermostats
Thermostats
and Setpoints
Thermostats and Setpoints
-
Components
Ancillary
Products
Ancillary Products
Sensors
- Temperature and Humidity
Wall & Window Sensors
Duct Sensors
Water Temperature Sensors

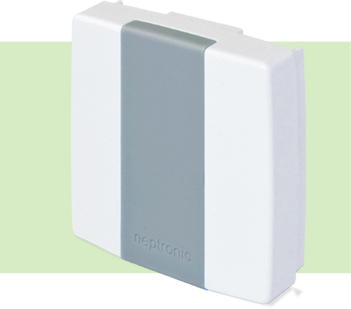

STR1 - Wall Temperature Sensor
Details
- STR1-11 Can be used with:
- Thermostat TRO5404 or TFC from Neptronic
- STR1-13 Can be used with:
- DF Series duct heater
- BM023C-3 actuator
- Thermostat TRO5404
- PTC
- ITO3, TCA or VVC controller from Neptronic
- Wall sensor for remote temperature reading
- Sensor 3.3KΩ or 10KΩ
SHR10 - Wall Humidity Sensor
Details
- General purpose applications
- Humidifier equipments
- Dehumidifier equipments
- Humidity sensor
- Plastic cover for wall mount installation
- Can be installed in association with Neptronic room humidistat (HRO20) or
directly to the Neptronic SK300 or SKR Series Steam humidifier
- Power supply: 24Vac or Vdc +/-10%
- Power consumption: 1 VA
- Electrical connection: 18 AWG minimum
- Actual humidity output: 0-10VDC (0-100% R.H)

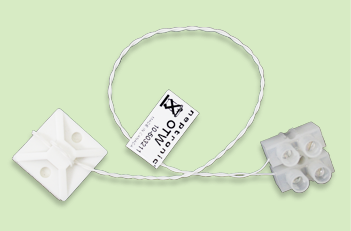

OTW - Window Temperature Sensor
Details
- To be installed in association with Neptronic room (HRM) or duct (HDM) humidistat
- Self adhesive to stick on window

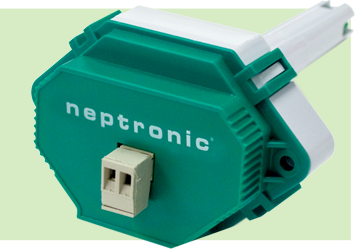

STC8 - Duct Temperature Sensor
Details
- STC8-11 Can be used with:
- TRO, TFC, TFH, TFP, EFC or EVC from Neptronic
- STC8-13 Can be used with:
- High accuracy
- Fast thermal response
- Epoxy encapsulated sensor
- High stability and long life
- Resistor/Temperature Curve "G" matched (STC8-11, 10KΩ)
- Resistor/Temperature Curve "A" matched (STC8-13, 3.3KΩ)

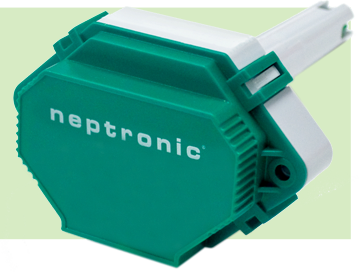

SHC80 - Duct Humidity Sensor
Details
- General purpose applications
- Humidifier equipments
- Dehumidifier equipments
- Duct humidity sensor
- Can be installed in association with Neptronic humidistat (HRO20)
- Status LED:
- Normal mode: Blink once every 10 seconds
- Fault: Fast blinking. Outputs at 10Vdc
- Built-in temperature sensor
- Power supply: 24Vac or Vdc +/-10%
- Power consumption: 1 VA
- Electrical connection: 18 AWG minimum
- Actual humidity output: 0-10Vdc (0-100% R.H)

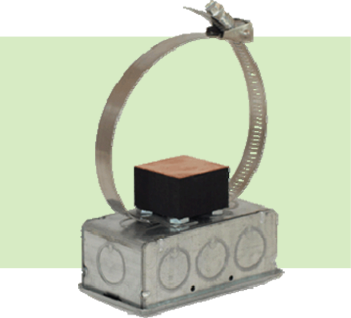

STP7-11 - Metal Strap-On Water Temperature Sensor
Details
- OEM/Industrial
- Light Industrial
- Direct Digital Control (DDC) Systems
- High accuracy and interchangeability over a wide temperature range
- Sensor's higher resistance output compares to platinum Resistance
Temperature Detectors (RTD)
- Sensitive to non-polarity
- CE approved

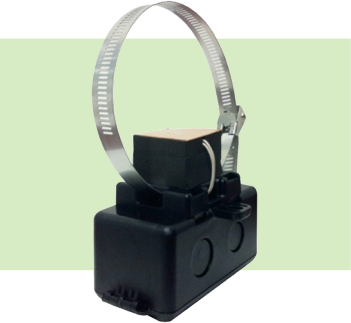

STP1-11 - Plastic Strap-On Water Temperature Sensor
Details
- OEM/Industrial
- Light Industrial
- Direct Digital Control (DDC) Systems
- High accuracy and interchangeability over a wide temperature range
- Sensor's higher resistance output compares to platinum Resistance
Temperature Detectors (RTD)
- Sensitive to non-polarity
- CE approved

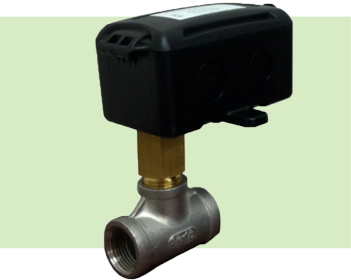

STI1-11 - Immersion Water Temperature Sensor
Details
- 2-pipe changeover fan coil configurations
- Water piping in VAV zoning configurations
- OEM/Industrial
- Light Industrial
- Neptronic controls and Direct Digital Control (DDC) Systems
- Immersion type temperature sensor
- Resistor/temperature curve "G" matched (10KΩ, type III)
- High accuracy and stability
- Fast thermal response
- Double encapsulation sensor eliminates moisture infiltration
- Machined brass thermowell
- ABS plastic enclosure
- Quick snap latch
- Hinged cover without screws
- Includes 316 stainless steel 3/4" x 1/2" t-tap fitting

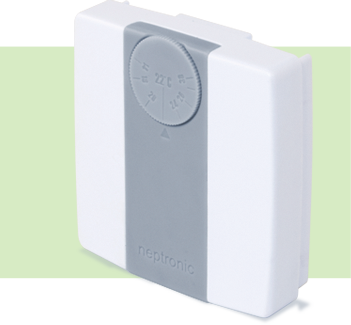

Details
- DF series duct heater
- BM023C-actuator
- TCA or VVC controller from Neptronic
- Celcius or Fahrenheit scale
- Sensor 3.3KΩ or 10KΩ
| STS3-13C |
$ 92 |
Celcius |
14°C to 30°C |
3.3KΩ |
| STS3-13F |
$ 92 |
Fahrenheit |
57°F to 86°F |
3.3KΩ |

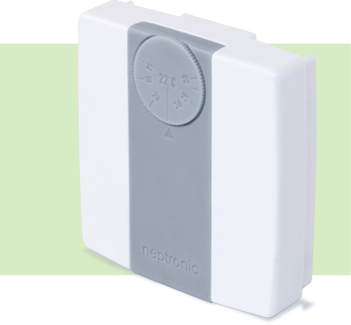

Details
- Must be used with a duct temperature sensor from Neptronic to control a DF series duct heater
- BM023C actuator
- TCA or VVC controller from Neptronic
- Celcius or Fahrenheit scale
| ITO3-C |
$ 92 |
Celcius |
14°C to 30°C |
| ITO3-F |
$ 92 |
Fahrenheit |
57°F to 86°F |

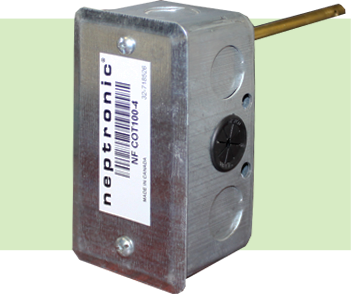

Details
- HVAC Applications
- Heating and cooling
- Adjustment free
- Easy installation
- SPDT output relay
- Indicator light
- Sensor operation temperature up to 212°F (100°C)

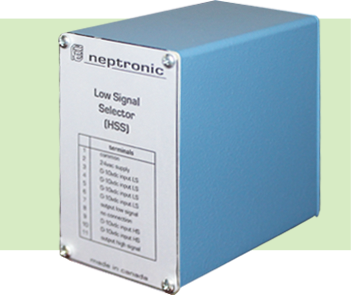

LSS
- Low & High Signal Selector
Details
- HVAC Applications
- High and low signal
- Low Signal:
- 0-10Vdc input control signals (up to 4)
- 0-10Vdc output low signal
- High Signal:
- 0-10Vdc input control signal (2)
- 0-10Vdc output high signal

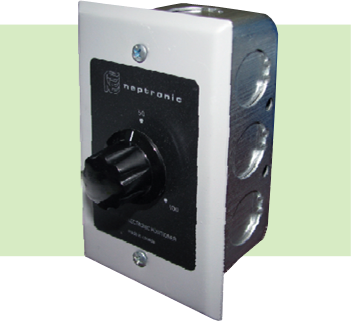

MEP
- Manual Electronic Positioner
Details
- Remote position control of analog actuators
- Variable, or fixed position controller
- Simple installation
- Wall or panel mounted
- Stainless steel faceplate

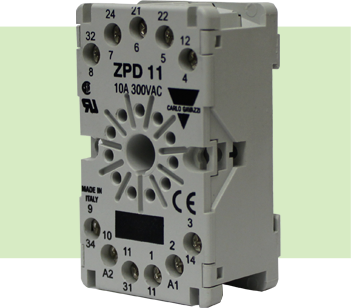

Details
- To be used with KI135, LSS, TCA, TSMM, VRC & VVC

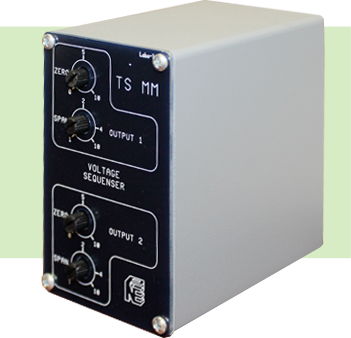

Details
- Designed to utilize one universal output from a building automation controller to sequence:
- Both heating valve and a cooling valve
- VAV face & bypass damper control loop
- Dual duct VAV unit
- 24Vac sequencer
- 0-10Vdc input ramp converted to two 0-10Vdc output ramps
- Zero & span adjustable
- Direct or reverse acting

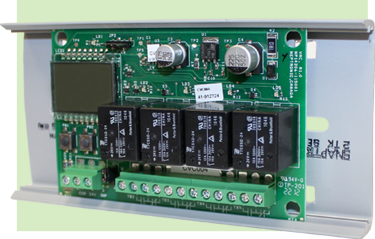

CVC
- Relay Control Module
Details
- 1 to 4 stage control in HVAC systems
- Sequencing boilers or chillerst
- 24Vac or 24Vdc supply
- 2 or 4 SPDT relays (staged or squenced operation)
- Voltage or current input
- Menu-driven LCD
- Adjustable relay setpoint, hystersis and activation delay
- Input signal management (loss of signal)
- Displays input voltage or current
- LED status indication of each relay
- Snap track mounting
- Non-strip, raising clamp terminals
