Master the Elements

Open Coil Type Heating Elements

When specifying electric heaters in a project, it is important to have a good knowledge of the different coil types. Knowing their characteristics, advantages and usual applications ensures an optimal design and prevents any unwanted situations in the future.

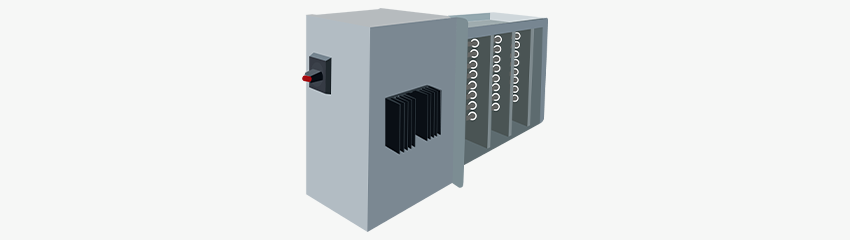

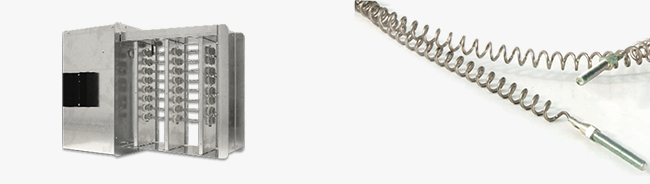

Description: commun:Frédéric:Andrew:Images:Heater:Open Coil 2.pngDescription: commun:Frédéric:Andrew:Images:Heater:7.png

Neptronic offers open coil, tubular and finned tubular heating element types. Open coil elements are one of the most common element types in the industry and can be installed in a wide range of applications.



Open coil advantages are:



          ·      Excellent heat dissipation

          ·      Minimal pressure drop

          ·      Fast response time

          ·      More kilowatts per sq.ft.

          ·      Quick delivery



There are two main open coil element types:



Standard open coil elements are NiCr 60 (grade C). They are composed of 60% Nickel, 16% Chrome and the balance is Iron. The maximum operating temperature is 1,850ºF (1,000ºC).



For applications in a humid environment, the NiCr 80 (grade A) elements are better suited. They are composed of 80% Nickel and 20 % Chrome (does not contain iron). This will allow a maximum operating temperature of 2,100º F (1,150ºC) and installation where condensation may be present in the air duct.



Open Coil

Grade C

Grade A

Nickel

60%

80%

Chrome

16%

20%

Iron

24%

0%

Operating Temp

1,850ºF (1,000ºC)

2,100ºF (1,150ºC)

Installation in humid environments

-

Yes

Most Common Applications

VAV Systems

x



Fan Coil Unit

x



Make-up Air/ Air Handler



x

Process Air Heaters

x

x

Indoor Pool Areas



x

Residential (Condos & Apartments)

x

x

Description: commun:Frédéric:Frédéric:Communications:TechTime:June 2015:Gagandip Technical Bulletin Pic.png

Gagandip Singh Rehal

Technical Support – Electric Heaters/Humidifiers

Contact him at this email address gagandip@neptronic.com
