Home Controls Relay Interface Board

CCC - Relay Interface Board

  • 240/120 Vac
  • 3, 4 or 5 contacts, 7A
  • Metal box with secure 4-point mounting
  • LED indication of relay status
  • Fused 240/120 Vac & 24 Vac circuits
CCC

  • CCC Series

    Relay Interface
    Board

    Relay Interface Board

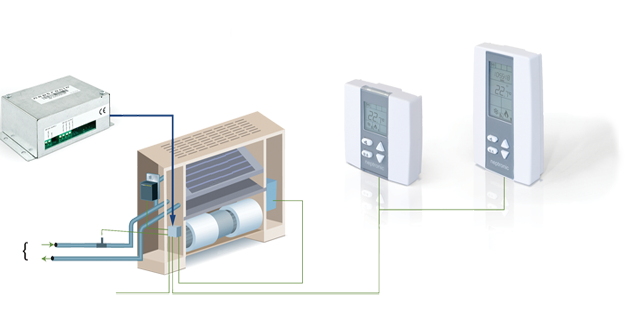

Tech Time
CCC - Relay Interface Board

CCC seriesRelay Interface Board

NeptronicValve Actuator
ChilledorHotWater
Changeover
Line Voltage
NeptronicDuct Heater
Fan Coil

Neptronic Fan Coil Wall Controllers

3x3
2x4
OR
in
out
3 speed fan
Cooling\HeatingCoil

Details

Features
  • 240/120 Vac
  • 3, 4 or 5 contacts, 7A
  • Metal box with secure 4-point mounting
  • LED indication of relay status
  • Fused 240/120 Vac & 24 Vac circuits
Applications
  • Ideal for fan coil applications where 240/120 Vac equipment must be controlled by a 24Vac thermostat controller
  • Designed to operate with TFC series thermostat

Models

CCC0 Models (PCB only)
120 Vac
Model Price Description
CCC013-07 $ 134 3 contacts, 7 Amps
CCC014-07 $ 163 4 contacts, 7 Amps
CCC015-07 $ 190 5 contacts, 7 Amps
240 Vac
CCC023-07 $ 134 3 contacts, 7 Amps
CCC024-07 $ 163 4 contacts, 7 Amps
CCC025-07 $ 190 5 contacts, 7 Amps
CCC7 Models (Metal Box)
120 Vac
Model Price Description
CCC713-07 $ 163 3 contacts, 7 Amps
CCC714-07 $ 190 4 contacts, 7 Amps
CCC715-07 $ 220 5 contacts, 7 Amps
240 Vac
CCC723-07 $ 163 3 contacts, 7 Amps
CCC724-07 $ 190 4 contacts, 7 Amps
CCC725-07 $ 220 5 contacts, 7 Amps
