What's New

CO₂

Native BACnet or
Modbus (selectable)

BACnet
Scheduler

Change of
Value

Firmware
Upgradeable

Priority Array

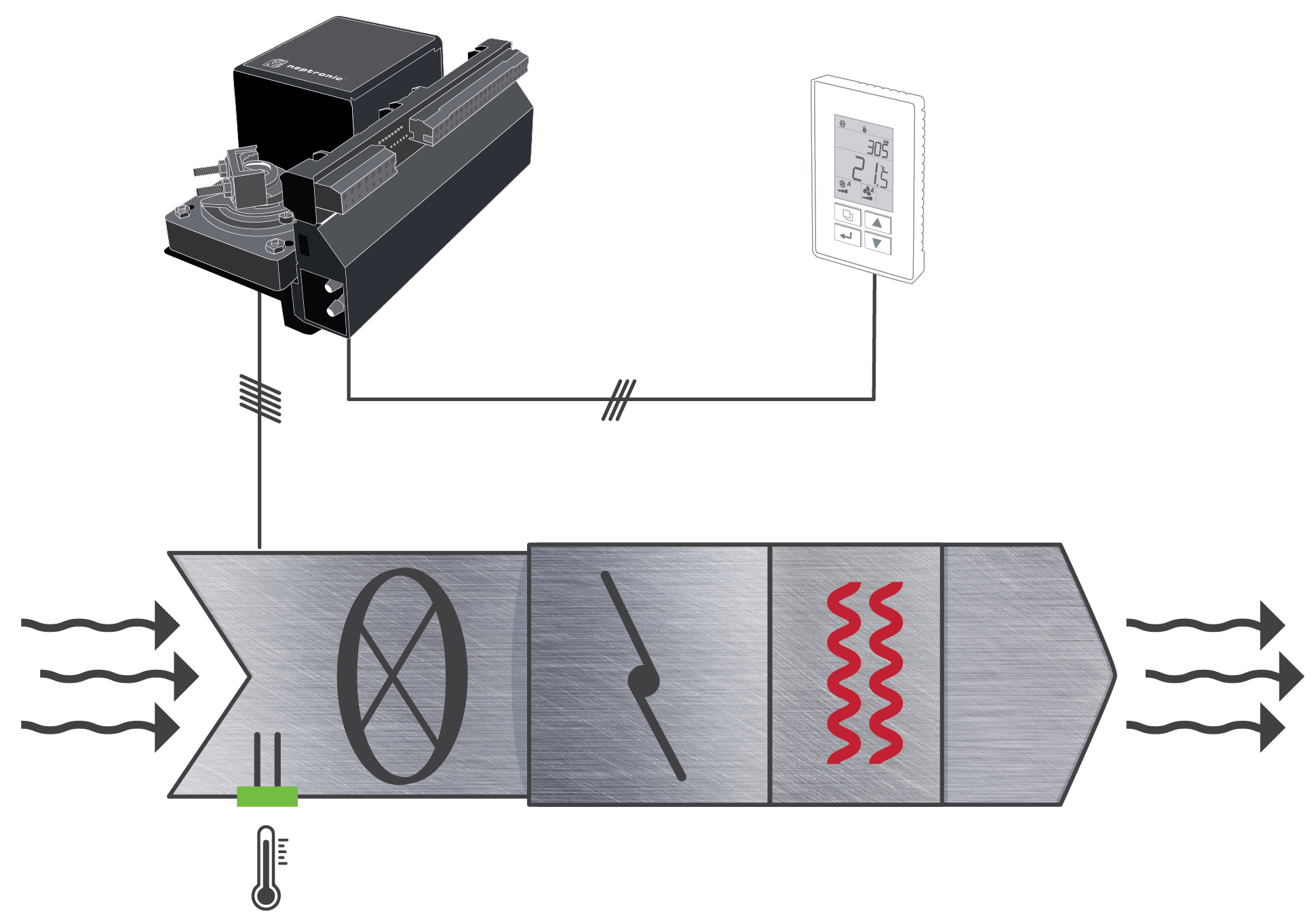

Single Duct Overview

EVCB Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

MultipleControl Wires

3 Wires

EVCB CONTROLLER

TO1Optional TRIAC
TO2Optional TRIAC
TO3Optional TRIAC
TO4Optional TRIAC
AO1Cooling / Heating
AO2Cooling / Heating
DI1Sensor input (on/off)
DI2Sensor input (on/off)
AI1Sensor input (analog)
AI2Sensor input (analog)
A+BACnet
B
DIGITAL ROOM SENSOR
LOOptional differential
HIPressure Sensor

Details

Controller Features

Field configured VAV algorithms
Built-in actuator 70in.lb [8Nm]
On board differential pressure sensor (pressure independent models)
Manual or automatic pressure mode selection (pressure independent models)
Configurable Inputs
- 2 analog inputs
- 2 digital inputs
Configurable Outputs
- 2 analog outputs
- Up to 4 TRIAC outputs
Configurable PI (Proportional-Integral) function
Simple air balancing and commissioning via digital room sensor
Independent, configurable proportional control band and dead band per ramp
Selectable internal or external temperature sensor (10KΩ)
Activate output with CO₂ from digital room sensor or external CO₂ sensor.
Change over by contact or external temperature sensor
24Vac operation
Removable, raising clamp, non-strip terminals
24Vac thermal fuse for overheat protection

Network Communication

BACnet MS/TP or Modbus RTU (selectable via menu)
Select MAC address via DIP switch or via network

BACnet MS/TP

MS/TP @9600, 19200, 38400 or 76800 bps
BACnet scheduler (up to 6 events)
Firmware upgradeable via network
COV (change of value)
Copy and broadcast configuration to other EVCB modules via menu or network
Automatic baud rate detection
Automatic device instance configuration

Modbus RTU

Modbus RTU @9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)

Models

Pricing

Controllers

Model#

Price

Type

Triacs

Feedback

EVCB14NIT0S	$ 709	Indep.	0	-
EVCB14NIT2S	$ 764	Indep.	2	-
EVCB14NIT4S*	$ 819	Indep.	4	-
EVCB14NDT4S*	$ 709	Dep.	4	-
EVCB14NIT0SF	$ 753	Indep.	0	Yes
EVCB14NIT4SF*	$ 861	Indep.	4	Yes

* Includes options for "fan powered box" applications

Controller (with external motor)

Model#

Price

Type

Triacs

Feedback

EVCB14NIT0X	$ 574	Indep.	0	-
EVCB14NIT4X	$ 684	Indep.	4	-
EVCB14NDT4X	$ 513	Dep.	4	-

Applications

Single duct, cooling only
Single duct cooling and/or heating
Up to 4 stage reheat and/or cool
Up to 4 On/Off heat and/or cool
Up to 4 time proportioned (TPM) heat or reheat
Up to 2 analog (0-10Vdc) reheat and/or cool
Up to 2 floating heat and/or cool
Pressure dependent or pressure independent
With or without auto changeover
Supply/exhaust (requires an additional EVC)

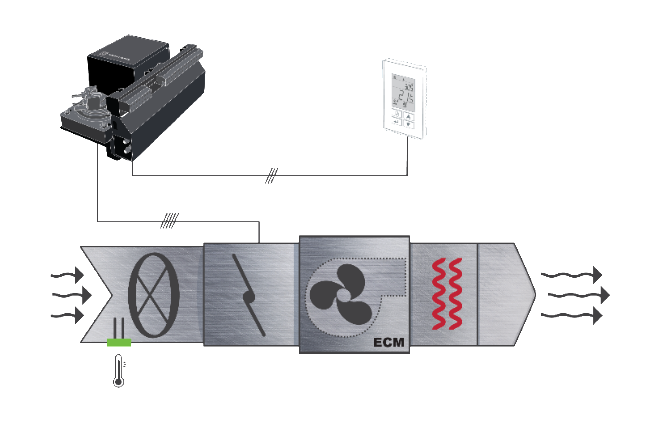

Fan Powered Box Overview

EVCB/VAV Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

Multiple Control Wires

3 Wires

EVCB CONTROLLER

TO1Optional TRIAC
TO2Optional TRIAC
TO3Optional TRIAC
TO4Optional TRIAC
AO1Cooling / Heating
AO2Fan
DI1Sensor input (on/off)
DI2Sensor input (on/off)
AI1Sensor input (analog)
AI2Sensor input (analog)
A+BACnet
B
DIGITAL ROOM SENSOR
LOOptional differential
HIPressure Sensor

Details

Controller Features

Field configured VAV algorithms
Built-in actuator 70in. lb. [8Nm]
On board differential pressure sensor
Manual or automatic pressure mode selection (pressure independent models)
Activate output with CO₂ from digital room sensor or external CO₂ sensor.
Configurable Inputs
- 2 analog inputs
- 2 digital inputs
Configurable Outputs
- 2 analog outputs
- 4 TRIAC outputs
24Vac operation
Removable, raising clamp, non-strip terminals
24Vac thermal fuse for overheat protection

Network Communication

BACnet MS/TP or Modbus RTU (selectable via menu)
Select MAC address via DIP switch or via network

BACnet MS/TP

MS/TP @9600, 19200, 38400 or 76800 bps
BACnet scheduler (up to 6 events)
Firmware upgradeable via network
COV (change of value)
Copy and broadcast configuration to other EVCB modules via menu or network
Automatic baud rate detection
Automatic device instance configuration

Modbus RTU

Modbus RTU @9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)

Models

Pricing

Controllers

Model#

Price

Type

Triacs

Feedback

EVCB14NIT4S	$ 819	Indep.	4	-
EVCB14NDT4S	$ 709	Dep.	4	-
EVCB14NIT4SF	$ 861	Indep.	4	Yes

Applications

Fan Powered Box
- Parallel or series
- 1 speed or analog fan
Up to 4 stage reheat and/or cool
Up to 4 On/Off Heat and/or cool
Up to 4 time proportioned (TPM) heat or reheat
Up to 2 analog (0-10Vdc) Reheat and/or cool
Up to 2 floating heat and/or cool

TDU - Universal Digital Room Sensor

TDU Features

Built-in temperature sensor and optional humidity, VOC, CO₂ and occupancy sensors (select models)
Elegant design
Universal wall-mount design
Used to configure and operate the EVCB VAV controllers
Simple 3-wire connection to controllers
Selectable Fahrenheit or Celsius scale
BACnet service port via on-board mini USB connector
Vertical or horizontal configuration

Available in a range of colours.

TDU00

TDU30

TDU60

Vertical Models

Price

Temp

CO₂

PIR

VOC

TDU00-100 TDU30-100 TDU60-100	$ 182	•
TDU00-101 TDU30-101 TDU60-101	$ 384	•	•
TDU00-102 TDU30-102 TDU60-102	$ 890	•	•	•
TDU00-104 TDU30-104 TDU60-104	$ 311	•			•
TDU00-105 TDU30-105 TDU60-105	$ 594	•	•		•
TDU00-106 TDU30-106 TDU60-106	$ 1,384	•	•	•		•
TDU00-107 TDU30-107 TDU60-107	$ 1,532	•	•	•	•	•
TDU00-108 TDU30-108 TDU60-108	$ 866	•	•	•	•

TDU10

TDU40

TDU70

Horizontal Models

Price

Temp

CO₂

TDU10-100 TDU40-100 TDU70-100	$ 227	•
TDU10-101 TDU40-101 TDU70-101	$ 419	•	•
TDU10-102 TDU40-102 TDU70-102	$ 957	•	•	•
TDU10-103 TDU40-103 TDU70-103	$ 767	•		•

TRL – Digital Room Sensor

Features

Built-in temperature sensor and optional humidity and CO₂ sensors (select models)
Backlit LCD with simple icon and text driven menus
BACnet service port via on-board mini USB connector
Selectable Fahrenheit or Celsius scale
Used to configure and operate EVCB VAV Controllers
Simple 3-wire connection to controllers

TRL54

TRL24

Model#

Price

Type

Temp

Humidity

CO₂

TRL54	$ 143	3x3	•
TRL24	$ 170	2x4	•
TRLG24	$ 711	2x4	•		•
TRLH24	$ 360	2x4	•	•
TRLGH24	$ 902	2x4	•	•	•

Overview

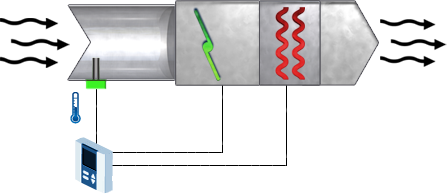

TRO5404

AI1Ext. temp sensor
AI2NSB sensor
HR1Heating ramp 1
HR2Heating ramp 2(high demand)
CR1Cooling ramp
CR2Cooling ramp(high demand)
TPMTime proportional modulation

Also available with 3 digital outputs

TRO5404
Wall Mount Controller
Runs all control wires
directly to TRO5404

Details

Control Features

TRO5404
- 4 analog outputs (2 heat / 2 cool)
- 1 TPM output (time proportional modulation)
- 2 sensor inputs
- Selectable internal or external temperature sensor
- Selectable proportional control band
TRO54P3X1
- 2 analog outputs (1 heat / 1 cool)
- 3 digital outputs
- 2 sensor inputs
- Selectable internal or external temperature sensor
- Independent, configurable proportional control band and dead band per ramp
- Changeover by contact or external sensor

Operational Features

24Vac operation
Backlit LCD with simple icon and text driven menus
Selectable Fahrenheit or Celsius scale
"Night Set Back" mode with manual override
Multi level lockable access menu
Lockable setpoint

Models

Pricing

Model

List
Price

Analog
outputs

TPM/Digital
outputs

Sensor
inputs

TRO5404	$ 225	4	1 TPM	2
TRO54P3X1	$ 240	2	3 Digital	2

Accessories

SCC80	$ 105	Changeover Sensor

Applications

Single duct, cooling only
Single duct cooling and/or heating
Up to 3 stage reheat and/or cool
Up to 3 On/Off Heat and/or cool
Up to 1 time proportioned (TPM) heat or reheat
Up to 4 analog (0-10Vdc) Reheat and/or cool
With or without auto changeover

Overview

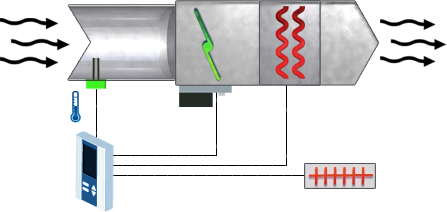

TRO24

TO1TRIAC
TO2TRIAC
TO3TRIAC
TO4TRIAC
AO1Cooling / Heating
AO2Heating
AI1Sensor input (analog)
AI2Sensor input (analog)
AI3Sensor input (analog)
A+Optional
B-BACnet

TRO24
Wall Mount Controller
Runs all control wires
directly to TRO24

Details

Control Features

Configurable inputs and outputs
- 4 TRIAC outputs (on/off, pulsed, or floating)
- 2 analog outputs (0-10Vdc heat/cool)
- 3 analog sensor inputs
Precise temperature control with programmable PI function
Selectable internal or external temperature sensor
Changeover by contact or external temperature sensor
Pressure sensor input with air flow program
Independent, configurable proportional control band and dead band per ramp
Anti-freeze protection
7-day schedule (select model)
BACnet communication (select model)

Operational Features

24Vac operation
Backlit LCD with simple icon and text driven menus
Selectable Fahrenheit or Celsius scale
"Night Set Back" mode with manual override
Multi level lockable access menu
Lockable setpoint

BACnet Features

BACnet® MS/TP @ 9600, 19200, 38400, or 76800bps
Selectable MAC address
Manual or automatic device instance configuration
Automatic Baud Rate Detection
Copy and broadcast configuration to other devices with same model #

Models

Stand-Alone Models

TRO24T4XYZ1	$ 428	-
TRO24T4XYZ3	$ 440	Scheduler
TRO24-EXT1	$ 428	Extended setpoint range

BACnet Models

TROB24T4XYZ1	$ 613	BACnet

Accessories

STC8	$ 78	Duct Mount Temperature Sensor

Applications

Single duct, cooling only
Single duct cooling and/or heating
Up to 4 stage reheat and/or cool
Up to 4 On/Off Heat and/or cool
Up to 4 time proportioned (TPM) heat or reheat
Up to 2 analog (0-10Vdc) Reheat and/or cool
Up to 2 floating heat and/or cool
Pressure dependent or pressure independent
With or without auto changeover

TRO24 - VAV Wall Mount Controller

EVCB

TRO24 - VAV Wall Mount Controller

TDU & TRL

TRO24 - VAV Wall Mount Controller

TRO54

TRO24 - VAV Wall Mount Controller

TRO24

TRO24 - VAV Wall Mount Controller

EVCB Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

MultipleControl Wires

3 Wires

EVCB CONTROLLER

Details

Models

Controllers

Controller (with external motor)

EVCB/VAV Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

Multiple Control Wires

3 Wires

EVCB CONTROLLER

Details

Models

Controllers

TDU Features

Available in a range of colours.

Features

TRO5404

Also available with 3 digital outputs

TRO5404
Wall Mount Controller
Runs all control wires
directly to TRO5404

Details

Models

TRO24

TRO24
Wall Mount Controller
Runs all control wires
directly to TRO24

Details

Models

TRO24 - VAV Wall Mount Controller

EVCB

TRO24 - VAV Wall Mount Controller

TDU & TRL

TRO24 - VAV Wall Mount Controller

TRO54

TRO24 - VAV Wall Mount Controller

TRO24

TRO24 - VAV Wall Mount Controller

EVCB Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

MultipleControl Wires

3 Wires

EVCB CONTROLLER

Details

Models

Controllers

Controller (with external motor)

EVCB/VAV Unit ControllerMounts on damper

Digital Room Sensor3-wire connection to EVCB

Multiple Control Wires

3 Wires

EVCB CONTROLLER

Details

Models

Controllers

TDU Features

Available in a range of colours.

Features

TRO5404

Also available with 3 digital outputs

TRO5404 Wall Mount Controller Runs all control wires directly to TRO5404

Details

Models

TRO24

TRO24 Wall Mount Controller Runs all control wires directly to TRO24

Details

Models

Allow optional cookies

TRO5404
Wall Mount Controller
Runs all control wires
directly to TRO5404

TRO24
Wall Mount Controller
Runs all control wires
directly to TRO24
